Automatic Automobile Beam Steel 800 KN CNC Punching Machine

Name: Automatic Automobile Beam Steel 800 KN CNC Punching Machine
Brand: Qingdao AMD
Price: 1 USD

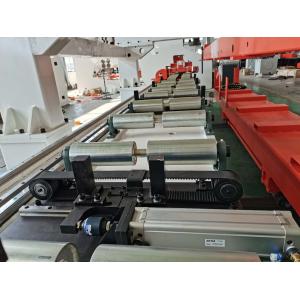

Buy cheap Automatic Automobile Beam Steel 800 KN CNC Punching Machine product

Brand Name : Qingdao AMD

Model Number : AMD-357

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets per month

Delivery Time : 30 workdays

Packaging Details : Stretch film

Control axis : 3-4

Punching frequency : 600hpm

Warranty : One year

Condition : New

Power rating : 20kw

type : servo type punch machine

CNC or not : CNC

Contact Now

Automatic Automobile Beam Steel CNC Punching Production Line For Sale

Product Description

● Automatic loadng, unloading, automatic palletizing.

● Automatic mold conversion, mold disassembly and installation is easy.

● Clamp automatic avoidance function, no dead zone processing.

● Movable waste trolley, which can be lifted and installed flexibly and quickly.

● Automatic width measurement, calculation, centerline positioning and automatic positioning on horizontal direction.

● The main frame of the machine is closed. The body is validated by finite element analysis.

● Fully automatic sheet processing; breakpoint continue punch function, data display function; Use floating clamps to reduce the damage of components under unexpected circumstances; The mold is easy disassemble. Work continuously except for necessary maintenance time; The CNC system is easy to operate and has complete functions.

Product Paramenters

  	 			参数Specification
 			单位Unit
 			PH-DLC6000/8000
 			PH-DLC1000/12000

 			冲压力Punch force
 			kn
 			800
 			1200

 			最大加工板材重量Max. Weight of processing sheet

 			kg

 			500

 			700

 			最大加工板材尺寸Max. processing sheet size

 			mm

 			6000*550/8000*550

 			10000*550/12000*550

 			最大加工板材厚度Max. processing sheet thickness

 			mm

 			12

 			12

 			X/Y 向送料行程X/Y direction feeding range

 			mm

 			X=6000/8000 Y=550

 			X=10000/12000 Y=550

 			冲孔频率Punching frequency
 			r/min
 			80
 			80

 			板材最大移动速度Max. Sheet moving speed
 			m/min
 			40
 			40

 			孔距精度Hole accuracy
 			mm
 			±0.1/m
 			±0.1/m

 			空气压力Air pressure
 			mpa
 			≥0.5


 			电压Voltage
 			V/Hz
 			380±5%/50HZ
