PH Series Fiber Laser Cutting Machine For Stainless Steel 1000w Power

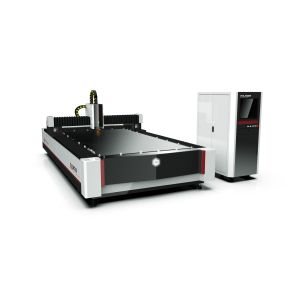

PH Series Fiber Laser Cutting Machine
Our machines have strong cutting ability, the thickness of stainless steel and aluminum can be cut to 30mm.We provide customized air cutting process database for customers with various metal materials such as carbon steel, aluminum plate, copper plate, etc., and help enterprises to reduce operating costs significantly. We also help to improve the processing technology and industry competitiveness for your company.
1. This cutting head has a strong advantage in medium power large format fiber laser cutting applications. The internal structure of the laser head is completely sealed to prevent dust contamination of the optical part. The laser head adopts two-point centering adjustment, and the focusing is driven by an imported motor, which significantly improves the efficiency in perforation. The protective lens is drawer-mounted for easy replacement.
2.it can cut and punch different kinds of metal material with high precision and high speed. 3.It is widely used for middle and thin metal plate.Cutting carbon steel, stainless steel, aluminum ,galvanized sheet,electrolytic plate and other metal materials with high quality, high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.
Technical Parameter
| project | parameter | unit |
| Processing size | (L) | 3000 | mm |
| | (W) | 1500 | mm |
| X/Y axis positioning accuracy | ±0.05 | mm |
| X/Y axis repeatable positioning accuracy | ±0.03 | mm |
| X/Y maximum positioning speed | 80 | m/min |
| Laser generator power | 1000 | W |
| Cutting capacity: carbon steel plate |
12
|
mm
|
| stainless steel | 6 | mm |
| aluminum | 4 | mm |
| brass | 3 | mm |
| Maximum acceleration of X/Y | 1.5 | G |
| Motion stroke (axis) | X | 3020 | mm |
| | Y | 1520 | mm |
| | Z | 150 | mm |
| Number of phase | 3 | |
| Power rating | 380 | V |
| frequency | 50 | Hz |
